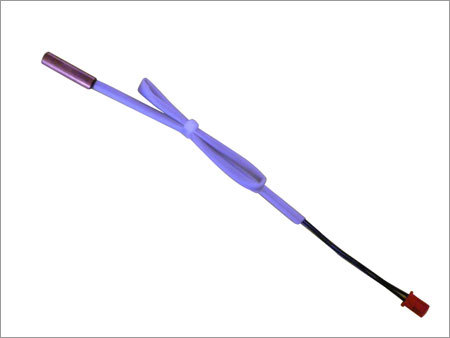

Metal Encapsulated
NTC THERMISTOR WITH INSULATED CABLE ENCAPSULATED WITH METAL ENCPSULATION
APPLICATION
Thermistor used for temperature measuring and control in
- Air-conditioner
- Refrigerator
- Water Heater
- Pool / Spa
FEATURES
- Excellent Moisture resistance
- High Stability
- Rigid Fitting
- Accurate over wide temperature range
- Range of resistance values
- Various types of wires / Cables
- Range of wire length
- Various Housing Length and Materials
REFERENCE DATA
|
Parameter
|
Value
|
|
Resistance value@ 25°C
Tolerance on R25 Value
B-25/85 Value
Tolerance on B-value
Thermal Time Constant
Dissipation Factor
Voltage Breakdown Strength
Operating temperature range
Wire length
Wire guage
|
1.00 K Ohm - 1.33 M Ohm
±1%, ±2%, ±5%
3380K - 4730K
0.75% - 2.0%
Appx. 10.0Sec
5 mW/K
5 KV
-40°C to 150°C
0.2 Mtr - 10.0Mtr
28 AWG to 20 AWG
|
|
