Epoxy Encapsulated Sensor
Product Details:
X
Product Description

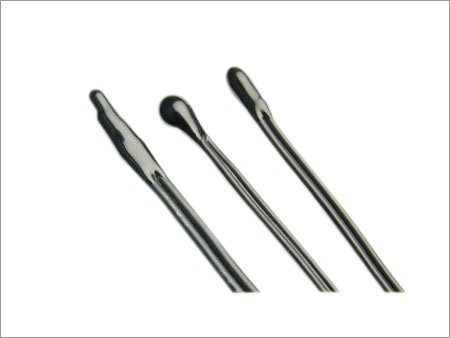

Epoxy Encapsulated-Sensor Assembly
NTC THERMISTOR WITH PVC INSULATED CABLE ENCAPSULATED WITH SPECIAL EPOXY RESIN
APPLICATION
Thermistor used for temperature measuring and control in:
NTC THERMISTOR WITH PVC INSULATED CABLE ENCAPSULATED WITH SPECIAL EPOXY RESIN
APPLICATION
Thermistor used for temperature measuring and control in:
- Air-conditioner
- Refrigerator
- Temperature Controller
- Excellent Moisture Resistance
- High Stability
- Accurate over wide Temperature Range
- Range of Resistance Values
- Various types of Wires / Cables
- Range of Wire Length
| Parameter | Value |
| Resistance Value at 25°C Tolerance on R25 Value B-25/85 Value Tolerance on B-value Thermal Time Constant Dissipation Factor Insulation Resistance Operating Temperature Range Wire Length Wire Guage | 1.00K Ohm - 1.33M Ohm ±1%, ±2%, ±5% 3270 K - 4730K 0.75% - 2.0% Appx. 10.0Sec 5 mW/K 500 Vdc -40°C to 85°C 0.2 Mtr - 10.0Mtr 28AWG to 20 AWG |
