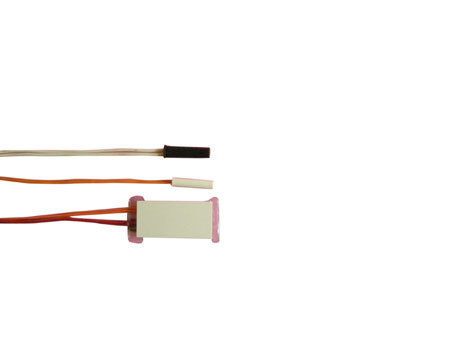

Plastic Encapsulated Sensor
Product Details:
X
Product Description
Plastic Encapsulated Sensor
APPLICATION
Sensor used for temperature measuring control or protect in
- Refrigerator
- Washing Machine
- Dish Washer
- Air-conditioner
- Excellent Moisture Resistance
- High Stability
- Rigid Fitting
- Accurate over wide temperature range
- Range of resistance values
- Various types of wires / Cables
- Range of wire length
- Various Housing Material
- Various Housing Dimensions
- Available with connector and terminals
- Double insulated versions voltage breakdown strength up to 5KV.
| Parameter | Value |
| Resistance Value at 25°C Tolerance on R25 Value B-25/85 Value Tolerance on B-value Thermal Time Constant Dissipation Factor Insulation Resistance Operating temperature range Wire length | 500 Ohm - 100K Ohm ±1%, ±2%, ±5% 3380K - 4730K 0.75% - 2.0% Appx. 10.0Sec 5 mW/K >100MW @500Vdc -40°C to 85°C 0.1 Mtr - 10.0Mtr |
