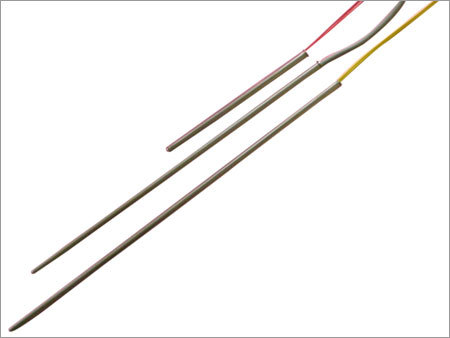

Metal Encapsulated Sensor
Product Details:
X
Product Description
Matched Pair Sensor Assembly
NTC THERMISTOR WITH INSULATED CABLE ENCAPSULATED WITH METAL ENCPSULATION
APPLICATION
Thermistor used for temperature measuring and control in
NTC THERMISTOR WITH INSULATED CABLE ENCAPSULATED WITH METAL ENCPSULATION
APPLICATION
Thermistor used for temperature measuring and control in
- Air-conditioner
- Water Heater
- Pool / Spa
- Boiler
- Sensor available with IECex zone-1 requirements
- Housing length from 50mm to 600mm
- High Stability
- Range of Resistance Values
- Various types of Wires / Cables
| Parameter | Value |
| Resistance value at 25°C Tolerance on R25 Value B-25/85 Value Tolerance on B-value Thermal Time Constant Dissipation Factor Voltage Breakdown Strength Operating temperature range Wire length | 2.2 K Ohm - 100.0 K Ohm ±1%, ±2%, ±5% 3380K - 4730K 0.75% - 2.0% Appx. 10.0Sec 5 mW/K 5 KV -40°C to 150 °C 0.2 Mtr - 50.0Mtr |
