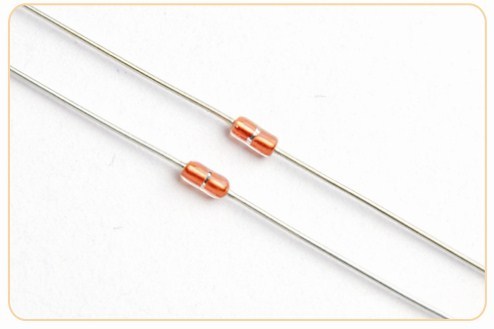

Linear Silicon PTC Thermistor
Product Details:
X
Product Description
Linear Position Sensors
THESE THERMISTORS HAVE A POSITIVE TEMPERATURE CO-EEFICIANT CHIP WITH AXIAL LEADS WHICH ARE HERMETICALLY SEALED WITH GLASS (DO-35) PACKAGE. REISTANCE INCREASE LINIERLY TO TEMPRATURE RAISE. THE MAIN CONTRUCTION MATERIAL IS MONOCRYSTALINE SILICON, SINCE THIS ALSO CALLED AS SILICON THERMISTOR
APPLICATION: These Thermistors are used for-
- Temperature Inspection and controler Automobile.
- Temperature Inspection and control of Home appliance
- Temperature measurement and control in Medical Equipment
- Micro motor timing control
- Temperature composition in instrument loop , integrated circuit and crystal Oscillator
FEATURES
- Resistance raises linierly while temperature raises
- High Stability: Annual diversification rate < 0.01°C per year.
- Resistant to moisture, corrosive atmosphere and harsh environment
- High voltage insulation
- Small dimension, solid, convenient for automatic installation
REFERENCE DATA
| Parameter | Value |
| Resistance @ 25°C Resistance Tolerance Temperature co-efficient (25/50)°C Dissipation Factor in air Maximum operating Current Rated Power Operating temperature Glass Encapsulation Dia Glass Encapsulation Length Lead Length | 200 Ohm to 2000 Ohm ±1%, ±2%, ±3%, ±5% Less Than 0.7%/°C 2.0 - 5mW/°C 1.0 mA 10mW -50°C to 150°C 2.0mm Max. 4.0mm Max. 25.0 mm Min. |
