Threaded Metal Encapsulated
Product Details:
X
Product Description
Threaded Metal Encapsulated

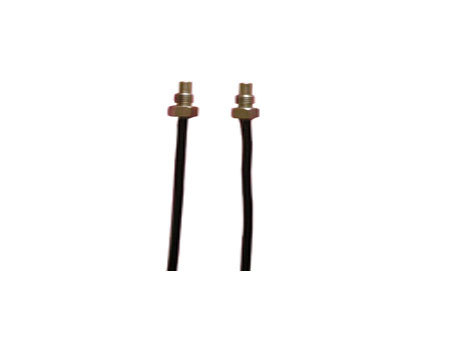

NTC THERMISTOR WITH INSULATED CABLE WITH THREADED METAL ENCLOSURE
APPLICATION
Thermistor used for temperature measuring and control in:
NTC THERMISTOR WITH INSULATED CABLE WITH THREADED METAL ENCLOSURE
APPLICATION
Thermistor used for temperature measuring and control in:
- Boiler
- Water Heater
- Pool / Spa
- Washing machine
- Automotive
- Air-conditioner
- Coffee maker
- Rigid Mechanical Fitting
- Excellent Moisture resistance
- High Stability
- Accurate over wide temperature range
- Range of resistance values
- Range of wire length
- Various Housing Length and Materials
- Various type of thread fitting
| Parameter | Value |
| Resistance Value at 25°C Tolerance on R25 Value B-25/85 Value Tolerance on B-value Thermal Time Constant Dissipation Factor Voltage Breakdown Strength Operating temperature range Wire length | 2K Ohm - 100K Ohm ±1%, ±2%, ±5% 3380K - 4730K 0.75% - 2.0% 3.0 -20.0 Second 5 mW/K 5 KV -40°C to 125°C 0.1 Mtr - 10.0Mtr |
