Temperature Protection PTC Thermistors
Product Details:
X
Product Description

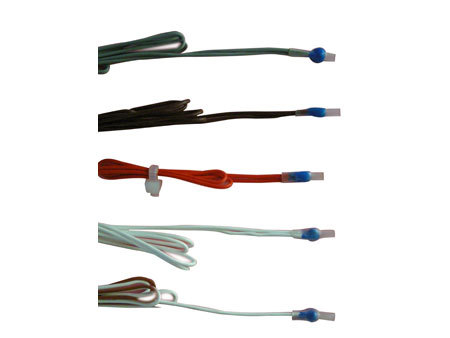

Temperature Protection PTC Thermistors
PTC THERMISTOR WITH INSULATED LEAD WIRE HOUSED IN A SLEEVE.
APPLICATION
Thermistor used for the following
- Motor Protection (Thermal Protection for Winding)
- Transformer Windings
- Industrial Equipment
- Power Supplies
- Electronic Data Processing
- Suitable to mount in wound components
- Well defined protection temperature levels (70 TO 150°C)
- Fast response time
- No need to reset supply voltage after over temperature switch.
- Small size and rugged
- Available in single and triplet versions
- Excellent long term behavior.
- Voltage breakdown strength 2.5KV
- Leaded and coated devices are available
- Climatic category 40/125/56
| Parameter | Value |
| Operating Voltage (Max) Thermal Time Constant Operating Temperature Range Dissipation factor | 30Vdc ± 8.0 sec -40°C to Rt+15°C 20 mW/°K |
REFERANCE DATA : SINGLE
| Parameter | Value |
| Resistance Value at 25°C Maximum Resistance @ Rt-5°C Minimum Resistance @ Rt+5°C Minimum Resistance @ Rt+15°C | 30 Ohm - 100 Ohm Less Than 550 Ohm More Than 1300 Ohm |
