Interchangeable NTC Thermistor
Product Details:
X
Product Description

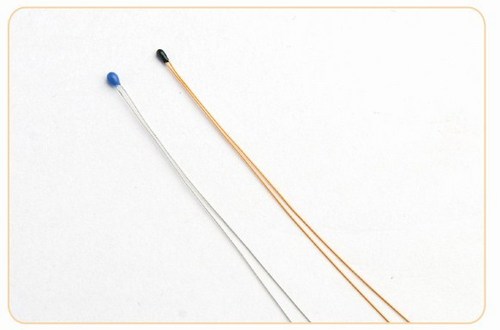

Interchangeable NTC Thermistor
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP WITH RADIAL LEADS. HIGH PRECISION INTERCHANGABLE NTC THERMISTORS ARE VERY ACCURATE, AND HIGHLY STABLE DEVICES DESIGNED FOR TEMPERATURE MONITORING IN MEDICAL APPLICATIONS. THEIR PRECISION INTERCHANGABILITY ELIMINATES THE NECESSITY OF INDIVIDUAL CIRCUIT CALIBRATION.
APPLICATION: These Thermistors are used for
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP WITH RADIAL LEADS. HIGH PRECISION INTERCHANGABLE NTC THERMISTORS ARE VERY ACCURATE, AND HIGHLY STABLE DEVICES DESIGNED FOR TEMPERATURE MONITORING IN MEDICAL APPLICATIONS. THEIR PRECISION INTERCHANGABILITY ELIMINATES THE NECESSITY OF INDIVIDUAL CIRCUIT CALIBRATION.
APPLICATION: These Thermistors are used for
- Electronic Thermometer.
- Medical Apparatus.
- Appliances
FEATURES
- High stability
- High accuracy
- Fast Thermal Response
- Small size
- R-T Curve Matching
- Epoxy Encapsulation
REFERENCE DATA
| Parameter | Value |
| Resistance @ 25°C Tolerance B- Value (25/85)°C B- Value Tolerance Dissipation Factor in air Response Time in air Operating temperature Head Dia Head Length Lead Length | 2 K Ohm to 100 K Ohm ±0.05°C from 30 to 45°C, ±0.1°C from 0 to 70°C, ±0.2°C from -20 to 50°C, ±0.3°C from 0 to 120°C. 3435K to 4252K ±0.2%,±0.5%, ±1.0% 0.7 mW/°C Less Than 6.0Sec. -40°C to 105°C 1.80mm Max 4.0 mm Max 20 to 200 mm |
