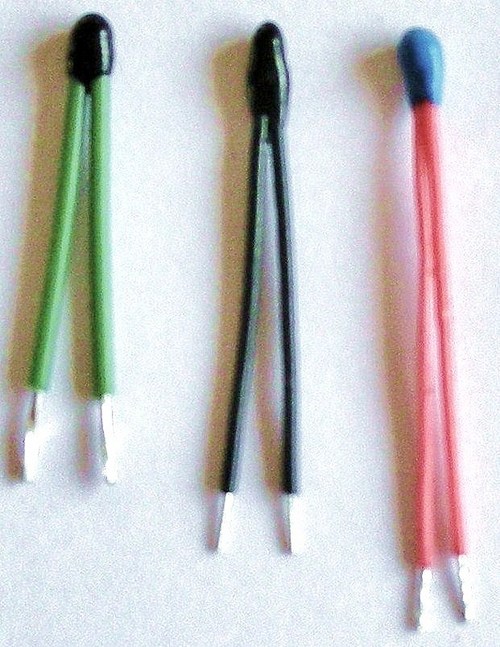

Insulated Leaded NTC Thermistor
Product Details:
X
Product Description
NTC Thermistor
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP OR DISC WITH INSULATED RADIAL LEADS WHICH ARE ENCAPSULATED WITH SPECIAL TYPE OF EPOXY.
APPLICATION: These Thermistors are used for
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP OR DISC WITH INSULATED RADIAL LEADS WHICH ARE ENCAPSULATED WITH SPECIAL TYPE OF EPOXY.
APPLICATION: These Thermistors are used for
- Temperature measurment and control in Automotive systems.
- Temperature measurement and control in Office equipment such as Photo copier, Printer, Battery pack and Battery charger
- Temperature measurment and control in General Circuit.
- Temperature measurment in Home Appliances.
- Temperature measurement and inspection in Industrial process control.
FEATURES
- High stability.
- High Reliability.
- High Accuracy.
- Fast Thermal Response.
- Wide resistance range.
- Long Life.
- Small dimension.
OPTIONS
- Special lead material and Length.
- Non-standard resistance value and tolerance.
- R-T Curve matched upto 0.1°C
- Various Insulations : PTFE, Kynar, PVC
- Single stand and Multi-strand
- Wire guage from 32AWG to 18AWG
- Custom Product.
REFERENCE DATA
| Parameter | Value |
| Resistance @ 25°C Resistance Tolerance B- Value (25/85)°C B- Value Tolerance Dissipation Factor in air Response Time in air Operating temperature Head Dia Lead Length | 100 Ohm to 1.33 M Ohm 0 to 70°C ± 0.1°C, ±1%, ±2%, ±5%, ±10% 3270K -4700K ±0.5%, ±1%, ±2% 1.0 mW/°C-5mW/°C Approx. 10 Sec. -50°C to 150°C 2.2 to 5.0mm 15 to 500mm |
