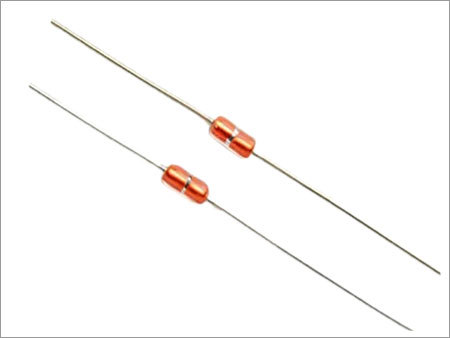

Glass Encapsulated NTC Thermistor
Product Details:
X
Product Description
Glass Encapsulated NTC Thermistor
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP WITH AXIAL LEADS WHICH ARE HERMETICALLY SEALED WITH GLASS (DO-35) PACKAGE.
APPLICATION: These Thermistors are used for-
THESE THERMISTORS HAVE A NEGATIVE TEMPERATURE COEEFICIANT CHIP WITH AXIAL LEADS WHICH ARE HERMETICALLY SEALED WITH GLASS (DO-35) PACKAGE.
APPLICATION: These Thermistors are used for-
- High temperature measurement and control in Home Appliances such as Cooker, Boiler, Electric Oven, Disinfection Tank, Microwave Oven, Electric warm Kiln etc
- Temperature measurement and control in Office equipment such as Photo copier, printer, battery pack and battery charger
- Temperature measurement and control in automotive Systems
- Temperature measurement and inspection in Industrial process control.
- Temperature composition in instrument loop , integrated circuit, crystal Oscillator and thermocouple.
- Good stability
- High Reliability
- Resistant to moisture, corrosive atmosphere and harsh environment
- Wide resistance range
- Wide temperature operating range
- High voltage insulation
- Small dimension, solid, convenient for automatic installation
REFERENCE DATA
| Parameter | Value |
| Resistance @ 25°C Resistance Tolerance B- Value (25/85)°C B- Value Tolerance Dissipation Factor in air Response Time in air Operating temperature Glass Encapsulation Dia Glass Encapsulation Length Lead Length | 2 K Ohm to 1 M Ohm ±0.5%, ±1%, ±2%, ±5%, ±10% 3270K -4700K ±0.5%, ±1%,±2% 2.0 mW/°C Less Than 10 Sec. -50°C to 300A°C 2.0mm Max. 4.0mm Max. 25.0 mm Min. |
